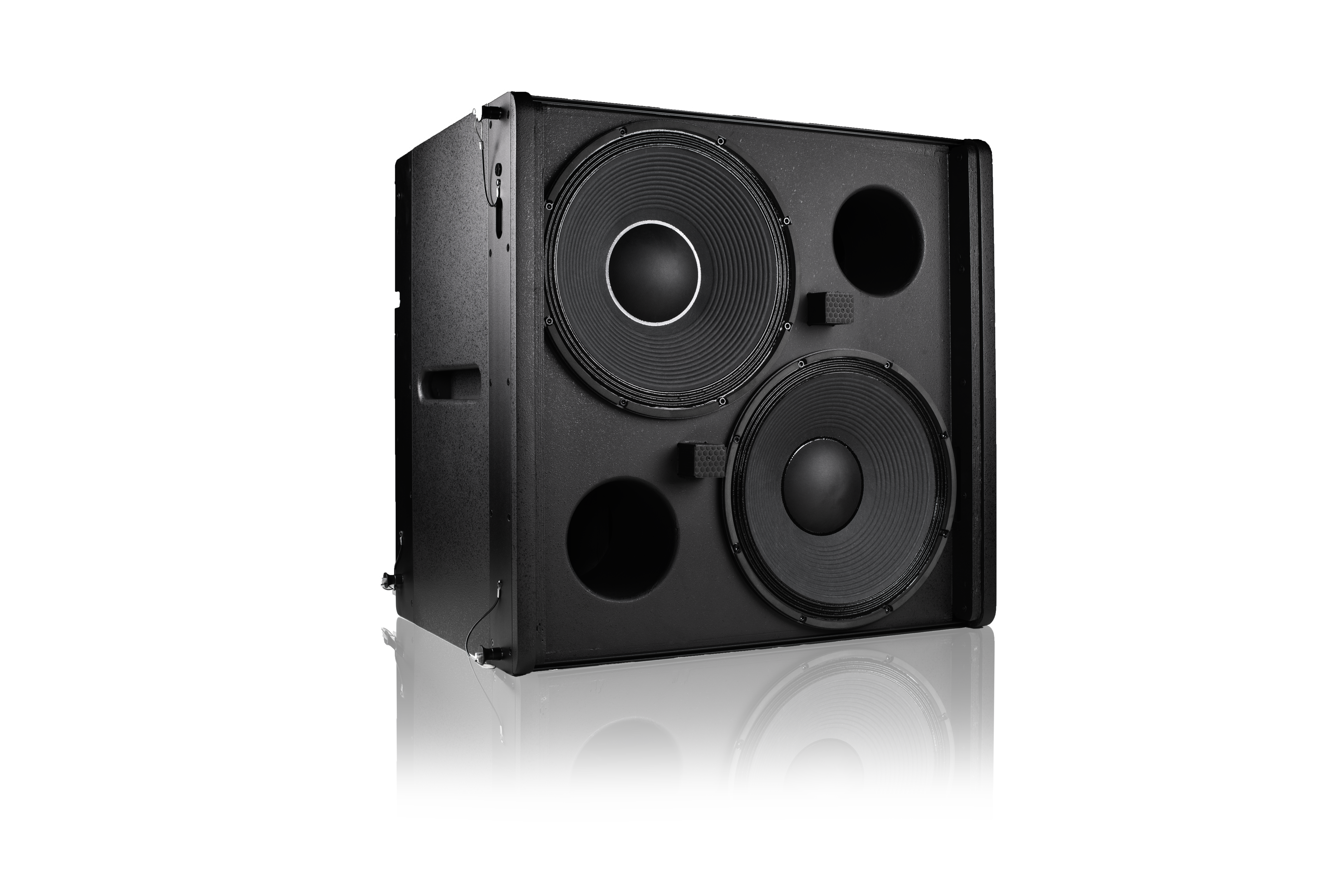

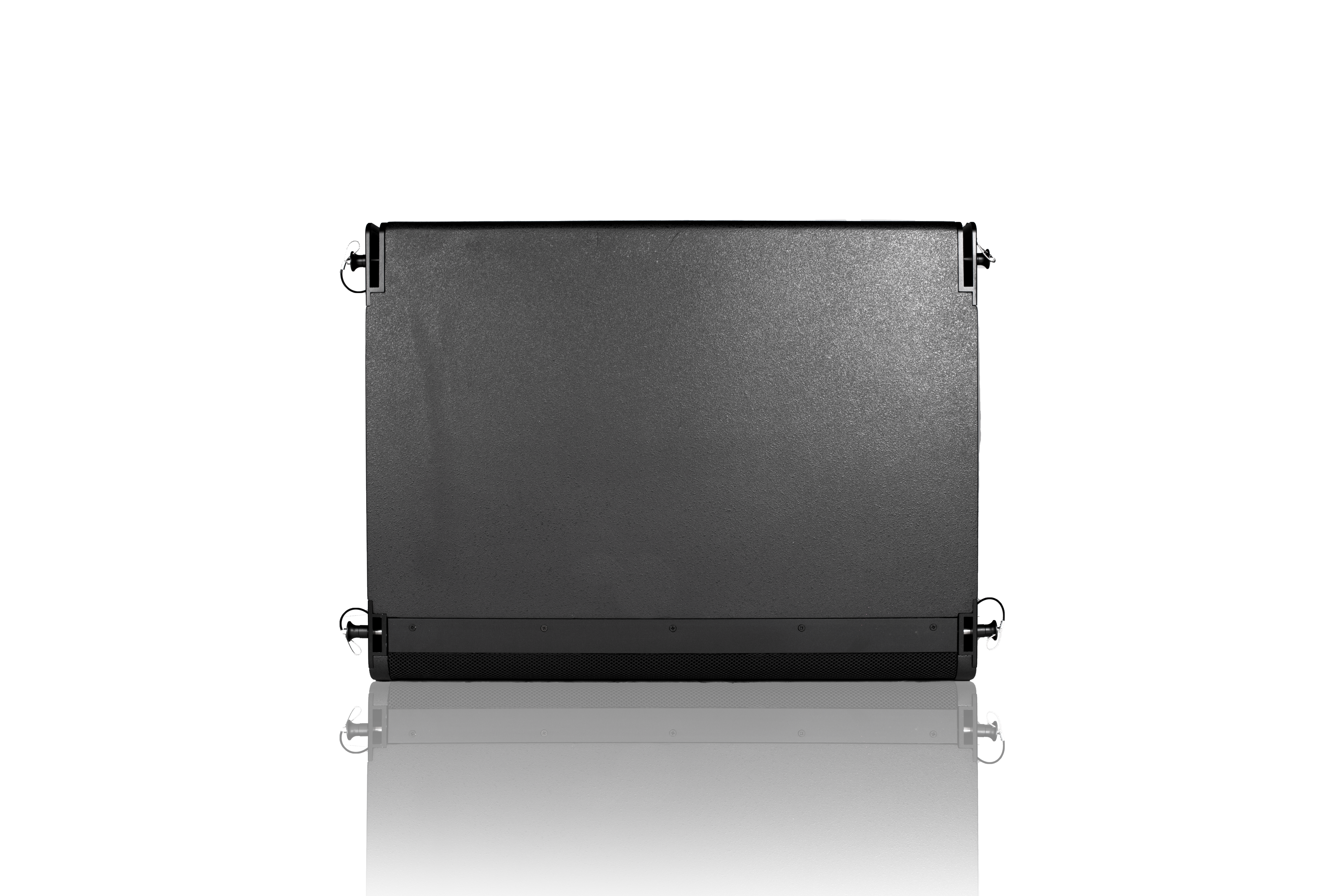

SLA218SP
Dual 18" Active Subwoofer
The SLA218SP speaker is a low-frequency speaker that uses a completely new exterior structure and a new surface coating process. It is composed of two 18-inch low-frequency units. The 100mm diameter aluminum voice coil ensures efficient heat dissipation, allowing the coil to perform optimally. The speaker’s power handling capability reaches 1000W, with short-term peak power reaching up to 4000W. The carefully designed magnetic circuit reduces the distortion of the low-frequency unit’s nonlinear waves, fully meeting the human body’s demand for high-quality low-frequency sound.
The SLA218SP enclosure is made of 18mm thick plywood, designed with a new acoustic architecture that is compact and refined, with a stylish appearance. The enclosure’s tensile strength can reach up to 4500N. The design of the SLA218SP speaker adopts the best-performing inverted low-frequency design available today, and the inverted tube is optimized to reduce wind noise at a certain speed, minimizing its interference with low-frequency output, thus improving sound quality.
The speaker uses an integrated steel grille made of Q235 material, with a powder coating process applied to ensure the grille has high strength and excellent resistance to salt spray, with an anti-salt spray capability (5% sodium chloride solution) of up to 96 hours. The external part of the iron grille is woven with cloth, preventing external water from entering and providing waterproofing.
The specially designed metal connectors and dedicated metal suspension brackets make it easy to connect the SLA218SP speaker with the SLA212P, and the connection and disassembly of the suspension brackets are equally convenient and quick. Angle adjustments can be completed by one person.
The SLA218SP speaker, paired with the SLA212P full-range speaker, is mainly used in large indoor venues such as gymnasiums, theaters, arenas, outdoor performances, and other similar locations. Especially when it comes to vocal performance, the system is characterized by a sound that is “clear, full, and without losing richness.” This is the distinctive sound quality of the SLA218SP and SLA212P system.
• A bass-reflex active subwoofer composed of two 18-inch low-frequency drivers.
• Frequency Response (-10dB): 35Hz - 200Hz. Maximum SPL: 125dB;
• Amplification Power: 4000W
• The cabinet surface uses a new type of paint and advanced spray coating technology, which increases the surface’s resistance to damage by three times compared to ordinary processes and paint.
• Specially designed metal fittings and dedicated hanging brackets make it very convenient and quick to connect and detach the SLA218SP speaker when used in conjunction with the SLA212P.
• The SLA218SP speaker adopts a bass-reflex design, reducing wind noise interference in low frequencies and improving sound quality.
• The dedicated hanging bracket can be used for both hanging and ground placement, with easy and quick disassembly and installation.
• 1 Input 2 Output High-Performance Audio DSP.
• 1.8-inch TFT Color Display: Shows various statuses (output voltage, current, temperature, protection, load overload, loadopen circuit, fault, output signal).
• A single network cable can achieve amplifier debugging and monitoring.
• Comprehensive protection functions (overheating, voltage limit, overload, output DC protection).
• The DSP can store up to 16 scene modes internally, 8 of which are factory presets.
• It also allows saving/loading parameters between devices, saving data to a computer, recalling with one key to restore factory settings, and mirroring device data.
• Sound Quality Characteristics: Clear, full, and rich without losing depth.
|
Frequency Response(-10db): |
35Hz-200Hz |
|
Max SPL @ 1m: |
125dB/131dB(PEAK) |
|
Woofer: |
2 x 18 inch LF |
|
Input signal: |
≥20kQ(Balance),10kΩ(Unbalance) |
|
Input Connectors: |
1 x XLR |
|
Amplification Power: |
4000W |
|
Nominal Impedance (Ohm): |
8Ω |
|
Voltage range: |
AC 100V/240V, 50Hz/60Hz |
|
Cabinet/Case Material: |
18mm Plywood |
|
Handles: |
2 × Wooden handle |
|
Grille: |
Polyurethane finish, black powder coating for grille |
|
Color: |
Black |
|
Dimension (W x D x H): |
976 x 774 x 710mm / (38.4 x 30.5 x 28in) |
|
Package Dimensions (W x D x H): |
1095 x 890 x 830mm / (43.1 x 35 x 32.7in) |
|
Net Weight: |
92 kg / 202.8 lb |
|
Gross Weight: |
100 kg / 220.5 lb |
