S12HP
Professional Active Performance System

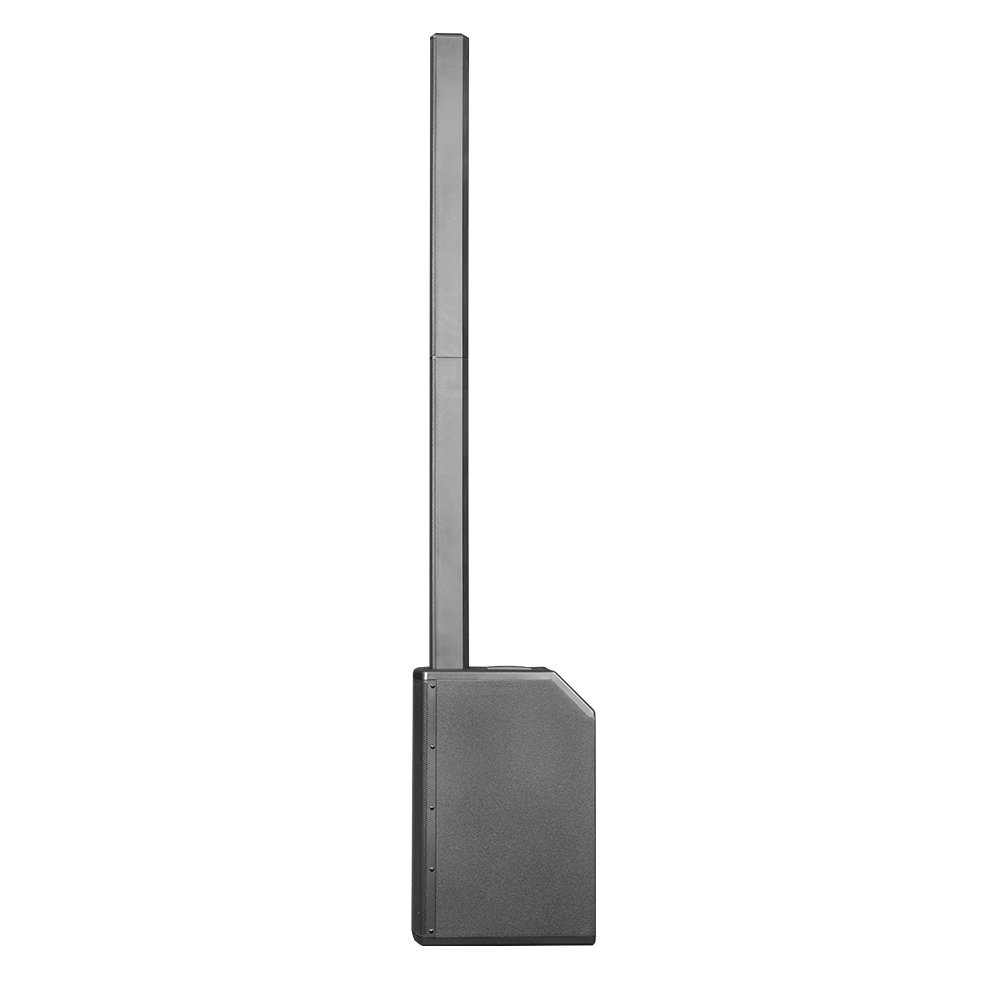

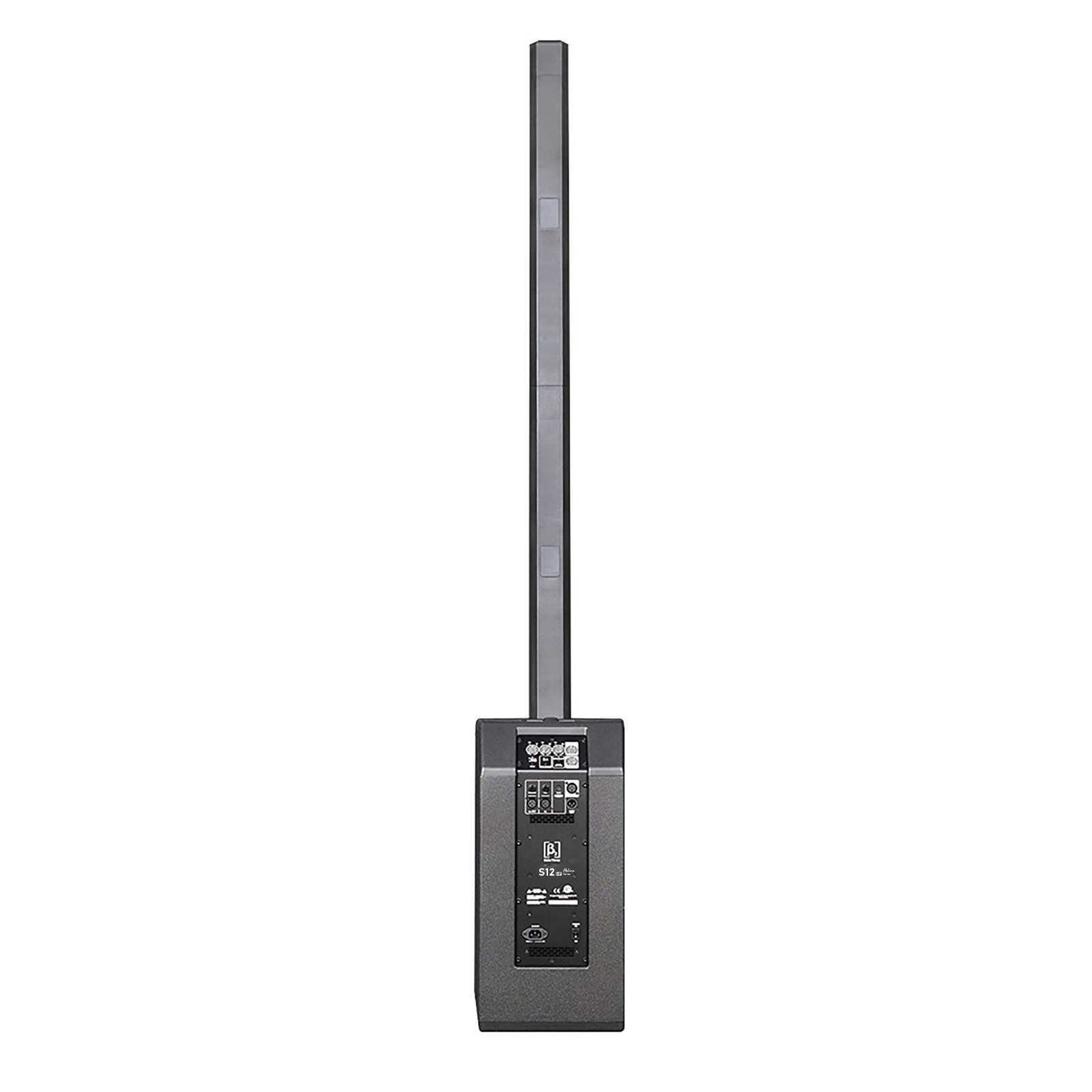

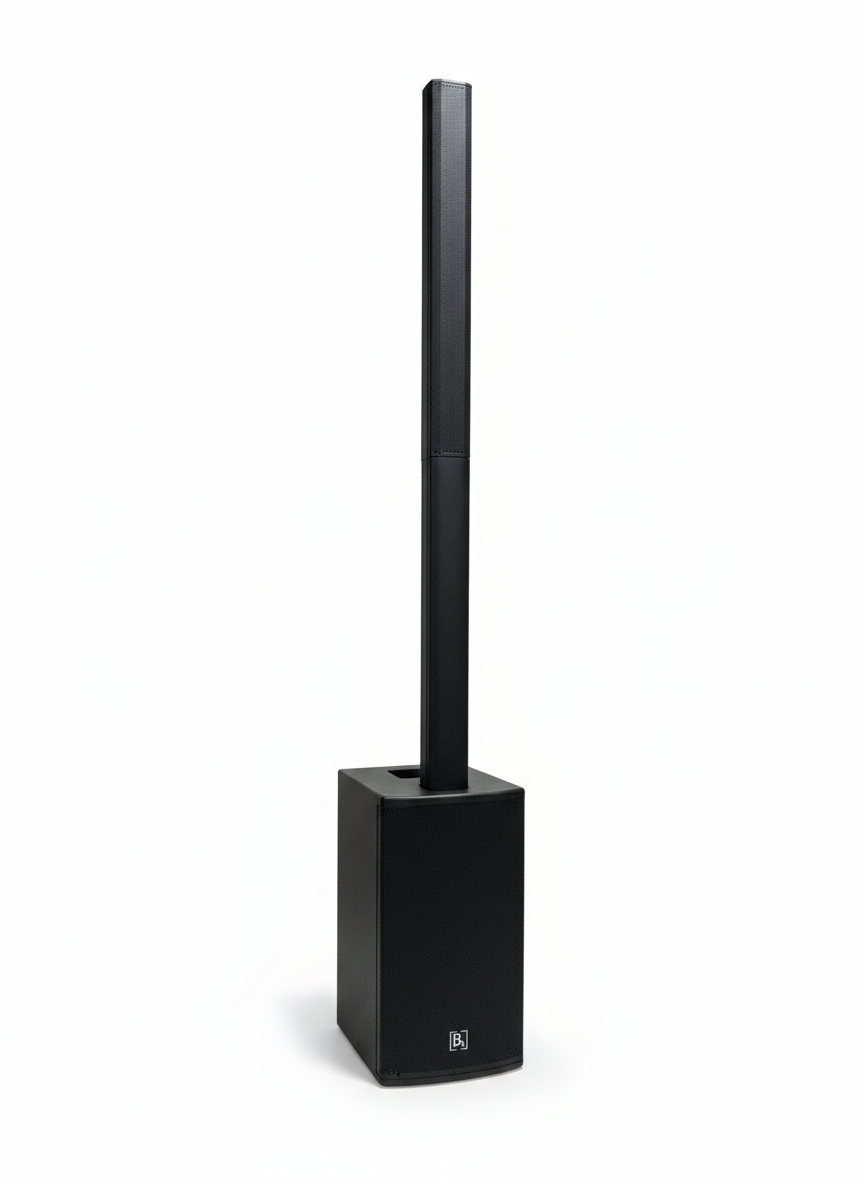

Meline S12HP is an active two-way 12" full-range speaker, specially designed for smaller touring performance, and multiple units can be linked for larger applications.
Meline S12HP is a perfect sound reinforcement solution that can be used quickly and easy setup. Installment and interconnecting can be done with one minute,easily carry. No eed extra power amplifier, mixer or any other speakers, one set Meline S12HP with bluetooth and con-necting with laptop, you get everything.lt is active pro speaker with one 12"woofer four 3" midrange drivers and one 0.75" HF driver. lt also features an integrated mixer, three voicing modes, and Bluetooth connectivity including wireless stereo playback between two systems. The speaker bar can be mounted directly into the subwoofer or placed on top of the included extension column. Up to sixteen S10HP/S12HP can be linked together, and up to three on board mixers can be active within a linked system.
* Compact and high SPL.
* 1550 Watts Peak Power.
* Max.SPL 126dB (peak)
* Neodymium Drivers:12
* Portable and easy installation design
* Bi-amp module of CLASS D
* Bluetooth Receiver with Wireless Stereo Playback Support.
|
Frequency Response(-3db): |
49Hz-20kHz |
|
Max SPL @ 1m: |
120dB/126dB(PEAK) |
|
Transducers Compression driver: |
0.75 inch Exit Neodymium Compression Driver |
|
Midrange: |
4 x3 inch Neodymium Mid Range Drivers |
|
Woofer: |
12 inch Neodymium Woofer |
|
Input Connectors: |
2*Mic input, Instrument input, Line input, AUX input, Main input, Bluetooth |
|
Total Power: |
LF:1250W,Mid/High:300W(RMS) |
|
Voltage range: |
AC 220V-230V~, 50Hz/60Hz |
|
Cabinet/Case Material: |
Plywood & Plastic |
|
Grille: |
Cabinet coated by Polyurethane paint; grille is powder coated |
|
Color: |
Black |
|
Dimension (W x D x H): |
327 x 410 x 2087mm / (12.9 x 16.1 x 82.2in) |
|
Package Dimensions (W x D x H): |
390 x 290 x 200mm / (15.4 x 11.4 x 7.9in) |
|
Net Weight: |
19.8 kg / 43.7 lb |
|
Gross Weight: |
23.6 kg / 52 lb |
