S28
Professional Active Performance System

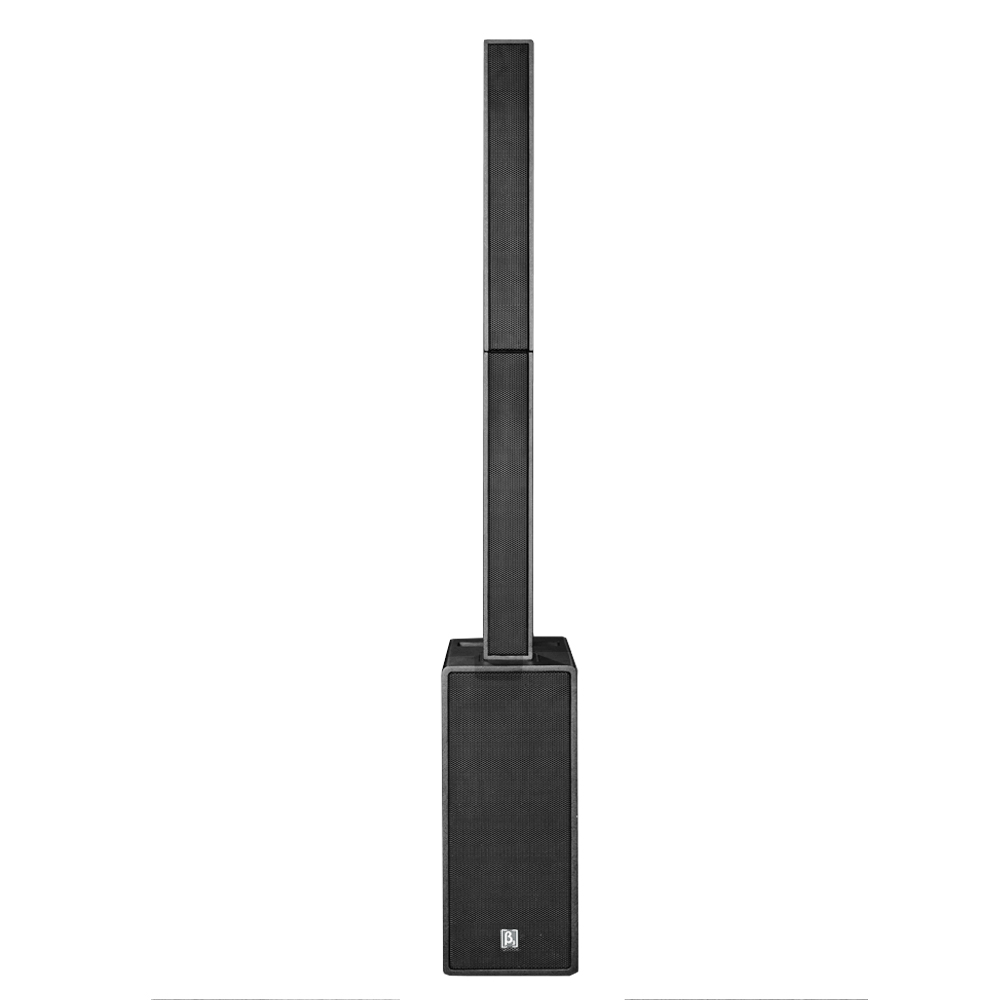

β3 Meline S28 is an active two-way 10-unit inverting full-range speaker, specially designed for small touring performance.
Meline S28 is a perfect sound reinforcement solution that can be used quickly and easy setup . Installment and inter-connecting can be done with one minute,easily carry with bags. No need extra power amplifier, mixer or any other speakers,one set Meline S28 with MP3, bluetooth and con-necting with laptop , you get everything.
Is active wooden pro speaker with dual 8" LF, 8 × 2" full range driver. Its feature is high power ,extremely SPL, waterproof design, class D dual amplifier driver ,which make sure we are able to enjoy the real and amazing music no matter what we are doing.
Compact,small and high SPL
Specially designed for small touring performance
Portable and easy installation design
Max.SPL 127dB (peak)
Bi-amp module of CLASS D
Bluetooth connection available
|

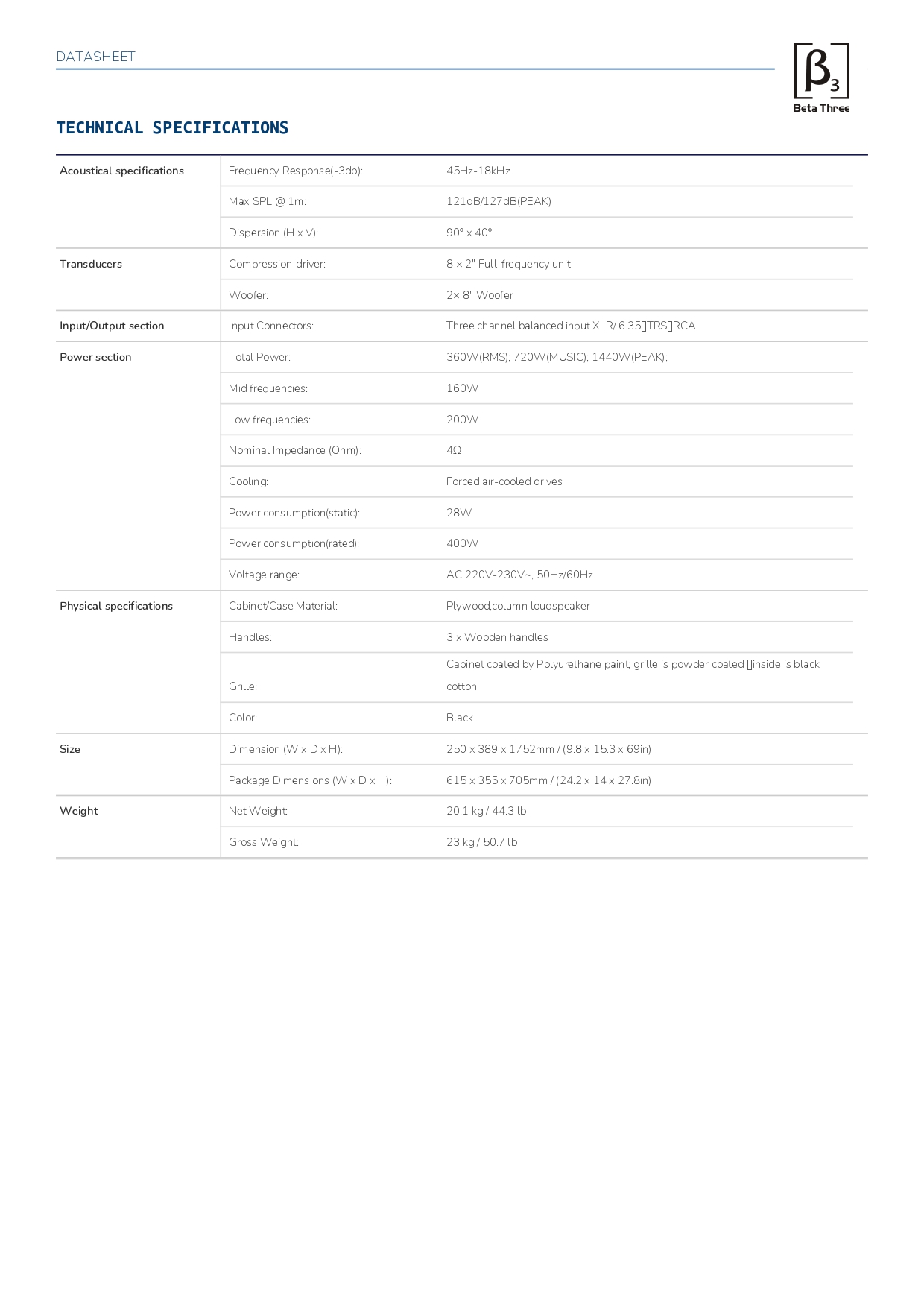

Frequency Response(-3db): |
45Hz-18kHz |
|
Max SPL @ 1m: |
121dB/127dB(PEAK) |
|
Dispersion (H x V): |
90° x 40° |
|
Compression driver: |
8 × 2inch Full-frequency unit |
|
Woofer: |
2× 8inch Woofer |
|
Input Connectors: |
Three channel balanced input XLR/ 6.35、TRS、RCA |
|
Total Power: |
360W(RMS); 720W(MUSIC); 1440W(PEAK); |
|
Mid frequencies: |
160W |
|
Low frequencies: |
200W |
|
Nominal Impedance (Ohm): |
4Ω |
|
Cooling: |
Forced air-cooled drives |
|
Power consumption(static): |
28W |
|
Power consumption(rated): |
400W |
|
Voltage range: |
AC 220V-230V~, 50Hz/60Hz |
|
Cabinet/Case Material: |
Plywood, column loudspeaker |
|
Handles: |
3 x Wooden handles |
|
Grille: |
Cabinet coated by Polyurethane paint; grille is powder coated ，inside is black cotton |
|
Color: |
Black |
|
Dimension (W x D x H): |
250 x 389 x 1752mm / (9.8 x 15.3 x 69in) |
|
Package Dimensions (W x D x H): |
615 x 355 x 705mm / (24.2 x 14 x 27.8in) |
|
Net Weight: |
20.1 kg / 44.3 lb |
|
Gross Weight |
23 kg / 50.7 lb |
